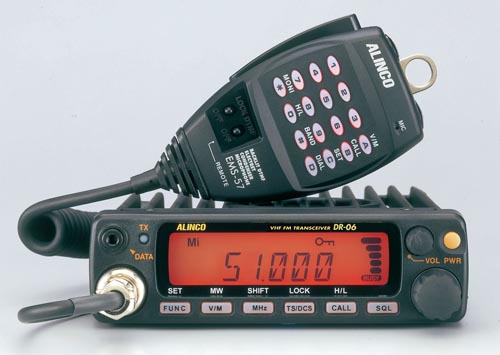

Features of DR-03T / DR-06T
- Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
- Same key-operations as DR-135-435 series mobile radios.
- EJ-41U internal TNC board is available as an option for 1200/9600bps packet (DR-06T only), no need to remove mic for packet operation.
- DR-03T 10 watts, H(10W)/M(5W)/L(2W) power settings.
- DR-06T 50 watts, H(50W)/M(20W)/L(5W) power settings.
- 100 memory channels
- Front panel data port (DR-06T only)
- Rear panel DSUB9 computer connection (DR-06T only)
- CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
- Clean, clear Alinco audio
- Super-wide 7 character alphanumeric display
- Wide and narrow FM modes (16K0 & 8K50F3E / DR-03T is fixed for NFM)
- Theft alarm feature
- A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
- Stays in mode you select (voice/packet) through
power off cycles - Ten autodial memories
- and more....at Low Alinco price!
Specifications
General | |||||
Frequency range |
|
||||
Operating mode | DR-06T/16K0F3E (FM)/8K50F3E (NFM) DR-03T/8K50F3E (NFM) F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T |
||||
Channel steps | 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz | ||||
Memory channel | 100 channels + 1 quick recall (CALL) | ||||
Antenna Connector | BNC (50ohm unbalanced) | ||||
Frequency stability | +/- 7ppm | ||||
Power supply requirement | 13.8V DC +/- 15% negative ground | ||||
Current drain | DR-06T:Approx. 11.0A TX High DR-03T: Approx. 3.0A TX High RX both models: Approx. 0.6A max |
||||
Usable temperature range | -10 - +60c (14 - 140F) | ||||
Dimensions (w/o projection) | 140(W) x 40(H) x 174(D) mm 5.59"(W) x 1.57"(H) x 6.85"(D) |
||||
Weight | Approx. 1.0Kg (35.3oz) | ||||
CTCSS tone | encoder/decoder 39 tones | ||||
Digital Coded Squelch | encoder/decoder 104 codes | ||||
Transmitter | |||||
Output power DR-06T / 03T |
Approx. 50W / 10W(HI) Approx. 20W / 5W(MID) Approx. 5W /2W(LOW) |
||||
Modulation system | Variable reactance frequency modulation | ||||
Spurious emission | Less than -40 dB | ||||
Maximum frequency deviation | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) | ||||
Receiver | |||||
Receive system | Double-conversion superheterodyne | ||||
Sensitivity (-12dB SINAD) | Less than -12.0dBu | ||||
Intermediate frequency | 1st IF 10.7 MHz, 2nd IF 450 KHz | ||||
Selectivity | -6dB: +/-12KHz or more (FM) -60dB: +/-28KHz or less -6dB: +/-6KHz or more (NFM) -60dB: +/-16KHz or less |
||||
Audio output power | More than 2W(8ohm 10%THD) | ||||
Optional Accessories | |||||
Microphones | EMS-53 Plain microphone EMS-57 DTMF/Remote microphone |
||||
Digital voice unit | DR-06T only / EJ-47U | ||||
TNC unit | DR-06T only / EJ-41U | ||||
DC Power supply | DM330MVT (120VAC) 30A switching DM330MVE (240VAC) 25A switching |
Product intended for properly licensed operators.Permits required for MARS/CAP use.
Specifications subject to change without notice or obligation. Performance specifications only apply to amateur bands.
APRS is a registered trademark of Bob Bruninga, WB4APR.
